Signal integrality

The main purpose of oscillograph is, signal giving report offers accurate intuitionistic show. In view of this reason, signal integrality is very important. Signal integrality is to show oscillograph rebuilds so that weaveform can be accurate the ability that shows primitive signal. If the signal integrality of an oscillograph is inferior, so it is no-good. When because become,the weaveform on oscillograph and true signal do not have same figure or character, executive test is without a meaning. However, a bit must want to remember, no matter oscillograph function has many,that is good, the weaveform on oscillograph is not true signal forever is accurate express. Because go to oscillograph join when you when circuit,this is, oscillograph has made the one part of circuit. In other words, can produce a few laden effect namely. Although instrument manufacturer tries hard to fall laden effect,come lowest, but on certain level they always exist.

The exterior of oscillograph

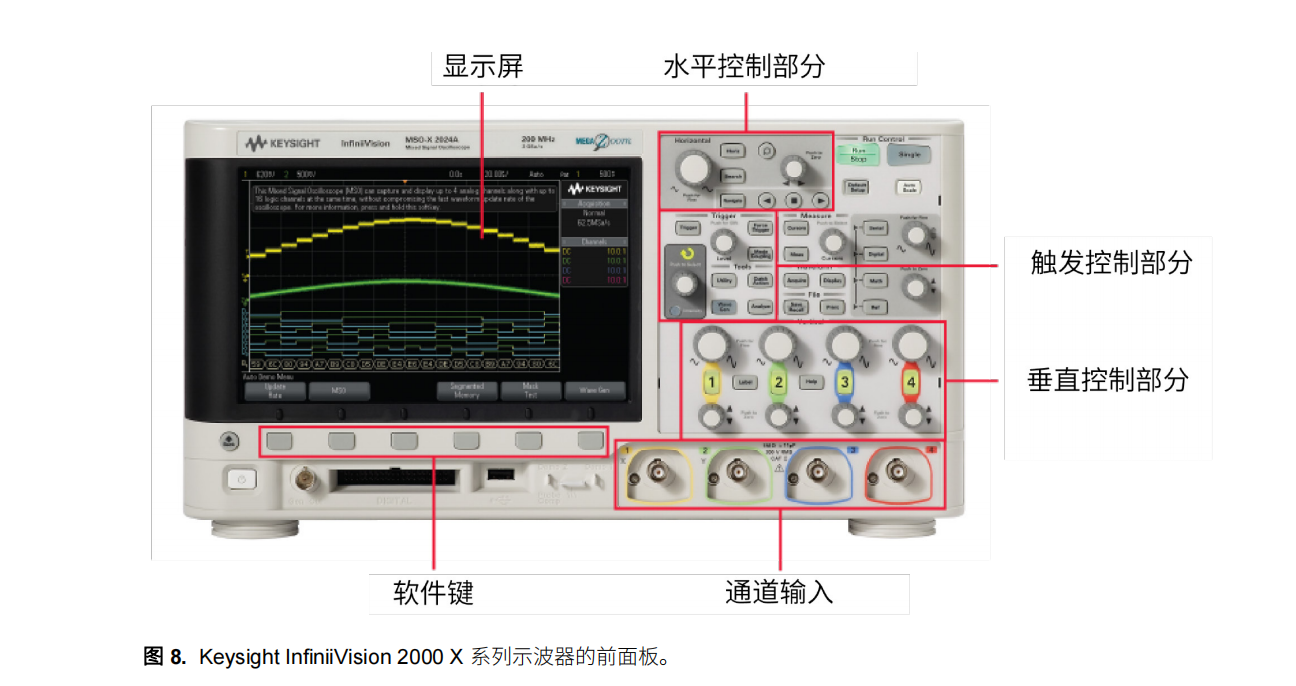

Generally speaking, the oscillograph that contemporary digitlization oscillograph and graph show 8 times is very similar. Nevertheless, oscillograph has a variety of kinds, the likelihood meets your oscillograph have greatly it seems that different. Nevertheless, a few basic skill can be most oscillograph some. Before most oscillograph board can divide for a few primary shares: Passageway input end, indication screen, level accuses, perpendicular accuse and spark accuse. If your oscillograph does not have the operating system that is based on Microsoft Windows, may a group of soft keys control screen menu.

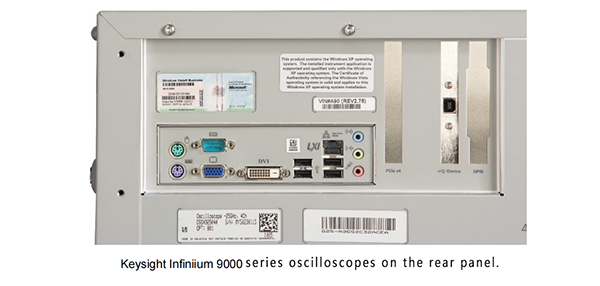

You can input end to send signal oscillograph through the passageway, the passageway inputs the connector that carry even if is used at inserting probe. Indication screen displays the screen of these signal namely. The level accuses and perpendicular accuse include knob and button, the horizontal rod that is used at controlling screen to show signal (represent time normally) with vertical axis (show tension) . Spark control division makes you OK tell oscillograph, you hope time base begins to collect below what condition. At the back of oscillograph board if pursue,9 are shown. If what you see, a lot of oscillograph are had with the same join function on the PC. For example port of CD-ROM driver, CD-RW driver, DVD-RW driver, USB, serial port and exterior monitor, mouse and clavier input.
