100G QSFP28 100km Optical Module Latest Solution
Knowledge Base + 2023.12.12

With the advent of the information age, the speed and distance of data transmission are required to be higher and higher. At present, Walsun has released a new solution with ultra-low cost that can realize 100G ultra-long distance transmission - 100G QSFP28 100km optical module, which is a comprehensive upgrade on 100G ZR4 80km optical module.

I. Product Overview

100G ZR4 100km is designed for 100km optical communication applications. ETU-LINK's 100G ZR4 100km module adopts 4-channel 25G NRZ wavelength-division multiplexing technology (LWDM4), is a duplex LC optical interface, and is widely used in 100G ZR4 Ethernet links.

Working Principle

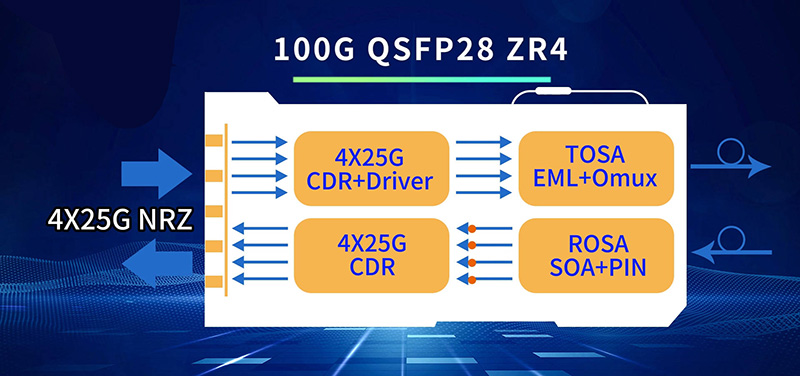

100G ZR4 100km optical module contains 4-channel optical transmitter, 4-channel optical receiver and module management block (including 2-wire serial interface). At the transmitter side, the four-channel serial data is recovered by the CDR and passed to the four laser drivers. At the receiving end, the 4-channel optical signals are amplified by SOA and then demultiplexed by an integrated optical demultiplexer. Each optical signal recovery is performed by a PIN detector and finally passed through a transimpedance amplifier and CDR to the CAUI-4 compliant output drivers.


Application Scenarios

1, data center interconnection: with the rise of cloud computing and big data applications, data centers need high-speed, reliable optical communication technology to connect servers, Infiniband QDR and DDR interconnections. 100G ZR4 100km optical modules provide a solution to meet the demand for high bandwidth.

2, long-distance transmission: in the telecommunications network, long-distance transmission is indispensable. 100G ZR4 100km optical modules can meet the needs of long-distance transmission of wide area networks and fiber optic backbone networks, to achieve fast and reliable data transmission.

3、Network Expansion: In the process of network expansion of enterprises and organizations, 100G ZR4 100km optical modules can help to realize high-speed connection between different locations of 100G BASE-ZR4 Ethernet links and provide high-quality communication services.
