How do you connect fiber optic cable to SFP?
Knowledge Base + 2023.11.27

You can connect a fiber optic cable to a Small Form-factor Pluggable (SFP) transceiver module by following these steps:

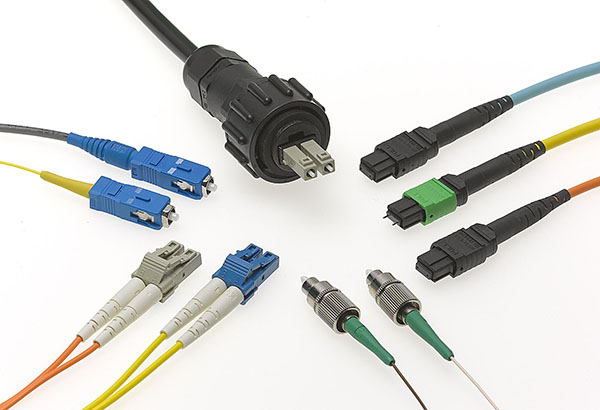

1. Ensure that the SFP transceiver module is compatible with the type of fiber optic cable you are using (single-mode or multi-mode) and the connector type (LC, SC, etc.).

2. Remove the protective dust caps from both the SFP transceiver module and the fiber optic cable connectors.

3. Align the connectors of the fiber optic cable with the corresponding ports on the SFP transceiver module.

4. Gently insert the connectors into the ports, making sure they are properly aligned and seated securely.

5. Once the connectors are inserted, tighten any locking mechanisms (if present) to ensure a secure connection.

6. After the fiber optic cable is securely connected to the SFP transceiver module, you can proceed to connect the other end of the fiber optic cable to the networking equipment or another SFP transceiver module.

It's important to handle fiber optic cables and SFP transceiver modules with care to prevent damage to the connectors and ensure a reliable connection. If you are unsure about the process, it's recommended to seek assistance from a professional with experience in handling fiber optic connections.
