Can you use single-mode fiber with multimode SFP?
Knowledge Base + 2023.12.08

No, single-mode fiber and multimode SFP are not compatible. Single-mode fiber uses a single mode of light to transmit data over long distances, while multimode SFP uses multiple modes of light to transmit data over shorter distances. Using single-mode fiber with a multimode SFP could result in data transmission errors and poor performance. It is important to use the appropriate fiber type for the corresponding SFP module to ensure reliable and efficient data transmission.

Challenges of Using Combines of SMF Modules and MMF Cables

When confronted with an outdated wiring architecture, you may come across a stack of non-reconfigurable MMF optic cables. However, unconventional modules and fiber pairings become essential to fulfill new demands if you aim to utilize 10G SMF modules within these existing infrastructures. Nonetheless, this approach can introduce a range of challenges; without careful selection of the right strategy, it could compromise the integrity of data transmission.

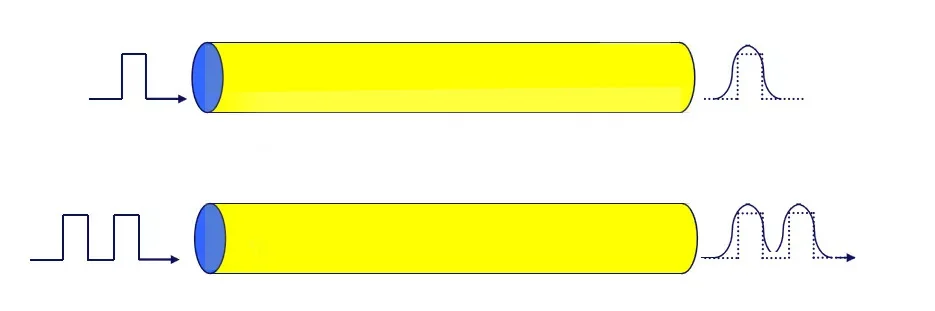

Mismatched combinations of modules and cables pose a significant risk due to their inherent incompatibility. When combining 10GBASE-LR modules and OM3 multi-mode cables, it is possible to apply short distances in this way, but some errors will occur; for example, a dissonance in optical properties arises, resulting in insufficient dispersion compensation. This divergence leads to delays and misalignment of data pulses, culminating in CRC(Cyclic Redundancy Check) or Frame Check Sequence(FCS) errors.


Figure 1: Cyclic Redundancy Check

Furthermore, the implications of such mismatches are exacerbated by the limitations of each cable type over specific transmission distances. While single-mode cables excel in long-distance transmissions, their performance diminishes when used for short distances due to their narrower core, leading to poor light coupling and excessive signal loss. Multi-mode cables, optimized for shorter distances, suffer from modal dispersion issues that hinder data clarity over extended ranges.

In navigating these challenges, it becomes evident that the path to a reliable data transmission experience hinges on the right modules and cables according to their design specifications and intended application scenarios.

Frequently Asked Question about Single Mode vs Multimode Fiber Optic Cable

Q: What is better single mode or multimode fiber type?

A: As has been mentioned above, single mode fiber and multimode fiber cable have their own advantages on cost and applications. There is no such thing that single mode optical fibers are better than multimode ones. Just choosing the best-fit one for your applications is ok.

Q: Can I mix single mode and multimode fiber type?

A: This answer for this question is “no”. Multimode fiber and single mode fiber have different core sizes, and the number of light modes that they transmit is also different. If you mix the two fibers, or connect them together directly, you’ll lose a large amount of optical loss, resulting in a link flapping or being down. Keep in mind that never mix different types of cabling randomly.

Q: Can I use a multimode transceiver on single mode fiber optic cable?

A: Generally speaking, the answer is "no". Large optical loss will occur if a multimode transceiver is connected with single mode fiber. However, the opposite will work. For example, 1000BASE-LX single mode SFP can work on multimode fiber cable by using mode conditioning fiber cable. Sometimes, fiber media converters also can be used to solve such problems between single mode transceivers and multimode transceivers.

Q: Single mode vs multimode fiber optic cable type: which should I choose?

A: When making a decision between single mode and multimode fiber cables, the first factor to consider is the fiber distance which you need actually. For example, in a data center, multimode fiber cables are enough for the distance of 300-400 meters. While in applications that require distance up to several thousands of meters, the single mode fiber is the best choice. And in applications that can use single mode and multimode fiber, other factors like cost and future upgrade requirements should be taken into consideration for your choice.
