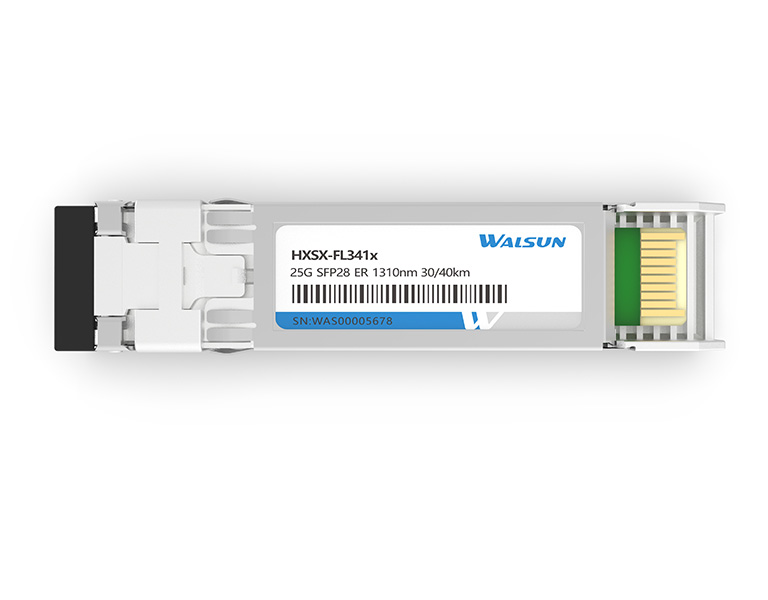

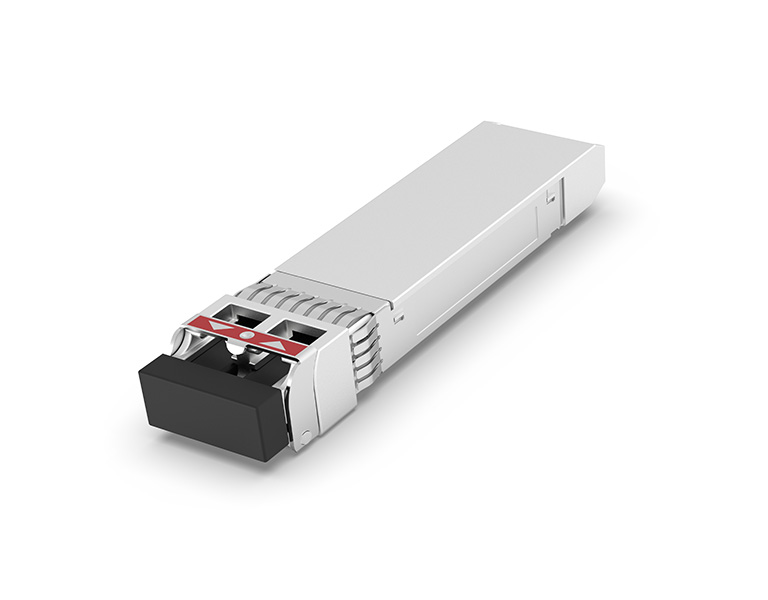

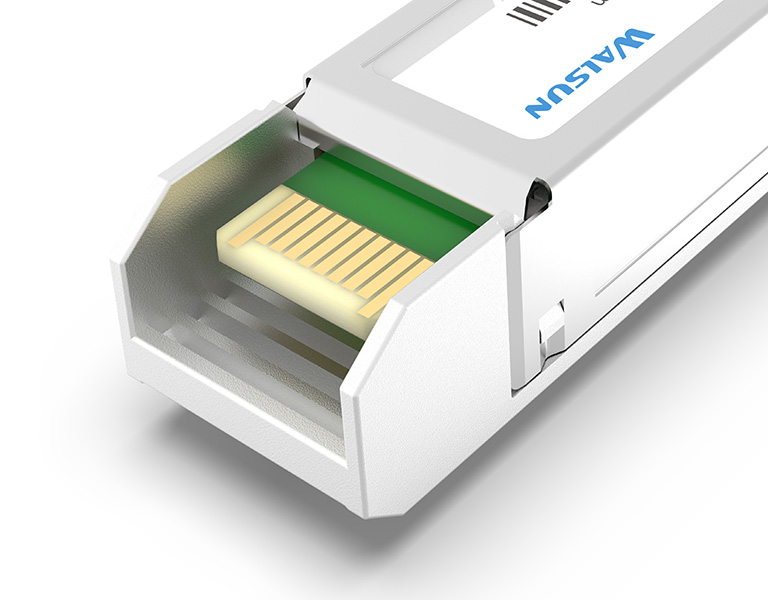

25G SFP28

Product Features

l  Up to 25Gb/s data links

l  Up to 10/40km on 9/125um SMF

l  Hot-pluggable SFP footprint

l  Digital diagnostic capabilities

l  Class 1 laser safety certified

l  Cost effective SFP28 solution, enables higher port densities and greater bandwidth

l  RoHS-10 compliant and lead-free

l  Single +3.3V power supply

l  2-wire interface for management specifications compliant with SFF 8472

l  All-metal housing for superior EMI performance

l  Case operating temperature : 0°C to +70°C/ -40°C to +85°C





Share +
Ordering Information
Product NumberData Rate
(Gb/s)
Wavelength
(nm)
Reach
(km)
LDTx Power
(dBm)
PDRx Sens
(dBm)
Temperature
(℃)
Download
HXSX-FL381x25 1310 80 DML 1~6 PIN+SOA <-23 0~70/-40~85
HXSX-FL1R2C-110/25 850 100m VCSEL -8.4 ~ 2.4 PIN <-10.3 0~70/-40~85
HXSX-FL1R2C25 850 100M VCSEL -8.4 ~ 2.4 PIN <-10.3 0~70/-40~85
HXSX-FL311C/I25 1310 10 DML -7.0~2.0 PIN < -11.5 0~70/-40~85
HXSX-FL341C/I25 1310 40 DML -3.0~6.0 APD < -14 0~70/-40~85
